Loop Cross Belt Sorter
Applicable to multi category logistics processing center, single/double/three/four layer loop cross belt sorters have been formed, suitable for parcel sorting of large and small pieces with different specifications.
Product Important Indicators and Functions
With the functions of double-end supply, “two-to-one”, flats induction, non-pole speed regulation, non-pole speed regulation, multi-language recognition, multi-face scanning, online video complement code, online automatic deviation correction, remote hier
Single layer small item sorter
Maximum operating speed of the main line：
3m/s
Maximum parcel weight：
8kg
Sorting efficiency：
Max 20000 pieces/h
Maximum parcel size：
465*380*250mm
Double layer small item sorter
Maximum operating speed of the main line：
3m/s
Maximum parcel weight：
8kg
Sorting efficiency：
Max 40000 pieces/h
Maximum parcel size：
465*380*250mm
Three layer small item sorter
Sorting efficiency：
Max 60000 pieces/h
Maximum parcel weight：
8kg
Maximum parcel size：
465*380*250mm
Four layer small item sorter
Sorting efficiency：
Max 8萬件/h
Maximum parcel weight：
8kg
Maximum parcel size：
465*380*250mm
Single layer bulk sorter
Sorting efficiency：
在分揀機主線速度為A檔2.5m/s的前提下，單區效率不小於1萬件/小時；
格口不複用、捷近線不啟用、雙端供件，效率不小於1.3萬件/小時。
Maximum parcel weight：
50kg
Maximum parcel size：
1000*700*150mm
Double layer bulk sorter
Sorting efficiency：
在分揀機主線速度為A檔2.5m/s的前提下，單層單區效率不小於1萬件/小時； 格口複用、雙端供件，雙層效率效率不小於4萬件/小時。
Maximum parcel weight：
50kg
Maximum parcel size：
1000*700*150mm
01
Slide to see more
Single layer small item sorter
Double layer small item sorter
Three layer small item sorter
Four layer small item sorter
Single layer bulk sorter
Double layer bulk sorter

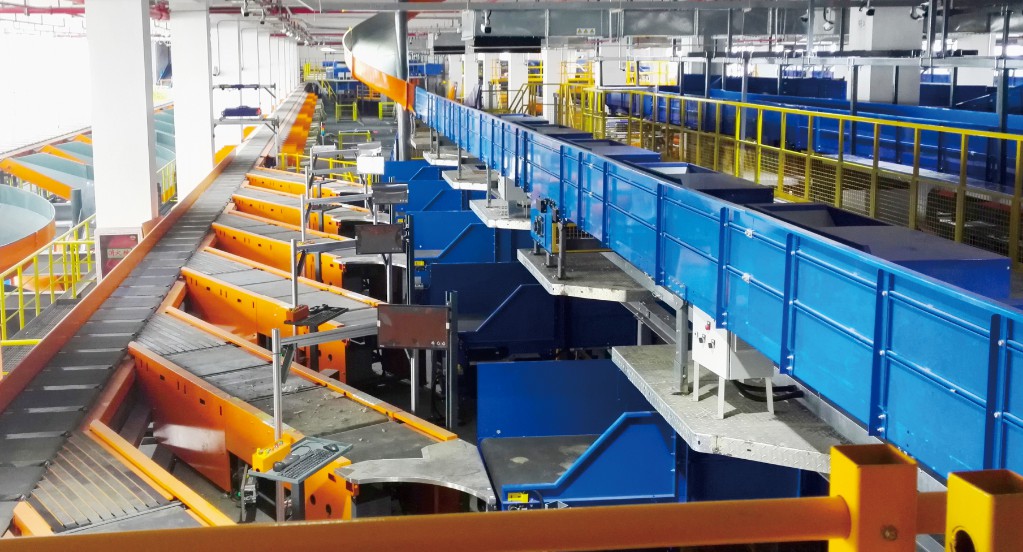

Application Scenario
Suitable for large express and warehouse processing centers. Customized design and development can be carried out based on sorting scale, chute direction, package size, and other requirements, with multifunctional stacking to achieve sorting and processin
